Machinery for Aerosols - Aerosol Concepts

A ‘standard’ aerosol pack comprises a can, valve, actuator nozzle and cap. The can is filled with product, the valve inserted and crimped in place whilst evacuating the can and the propellant filled through the valve. The aerosol is then coded, checkweiged, pressure and leak tested before the actuator/cap is placed prior to packaging.



This involves ten operations to create a standard aerosol. Special aerosols usually need further operations.



DH supplies a complete range of Pamasol equipment for production and testing of standard aerosols, from semi-automatic systems to high-performance systems handling up to 600 aerosol containers per minute. An outstanding feature of these machines is their practical and user-friendly concept.



Modular

Thanks to the modular design of the systems, we can respond to our customers’ needs and can develop individual solutions.



Flexible
Suppliers have to repeatedly face new challenges in global competition. The continued implementation of technological progress is essential. DH and Pamasol are in the forefront of this progress, continuously innovating and developing equipment for the aerosol industry.



Systems that are already in operation can thereby be adapted or expanded to changing conditions. For our customers, this ensures the greatest possible flexibility when adapting to new markets.


Special filling machines for polyurethane foams

The production of polyurethane foams for construction and technical applications is an important branch of the aerosol industry. We can supply filling machines from manually operated single stations up to automatic filling lines.

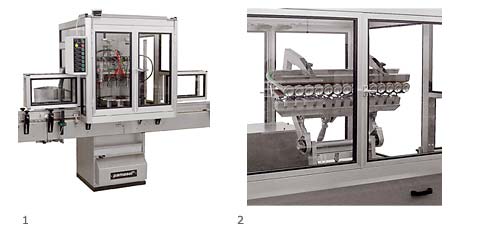

1: Indexing Unit with Pressure Fillers – Special execution for rapid cleaning
2: Can Shaker

Special filling machines for polyurethane foams

Processing bag-on-valves gently and securely

The demand for the filling of bag-on-valves has increased strongly over the last few years, both for small production runs and for industrial processing. Pamasol has developed a machine concept that guarantees you a gentle and secure processing of bag-on-valves.



1: Undercup Installation fills the compressed gas and crimps the valve
2: Product Filler
3: Gel Mixing Filler
4: Macromat 2045 with Vacuum Crimper and Pressure Tester
5: Macromat LB20 with Gel Mixing Filler
6: Valve Inserter
7: Undercup Crimper, Pressure Tester
8: Gel Filler
9: Sorting unit for bag-on-valves

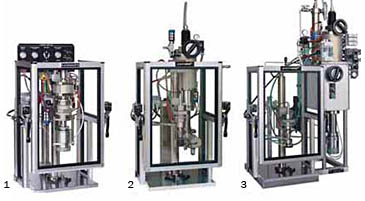

1. Undercup Crimper - 2. Product filler - 3. Gel mixing filler

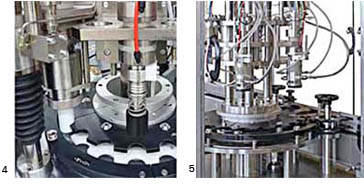

4. Vacuum Crimper and Pressure Tester - 5. Gel Mixing Filler

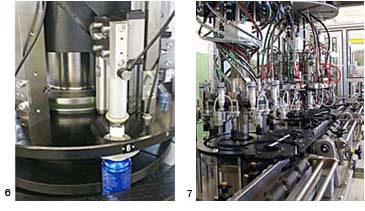

6. Valve Inserter- 7. Undercup Crimper, Pressure Tester

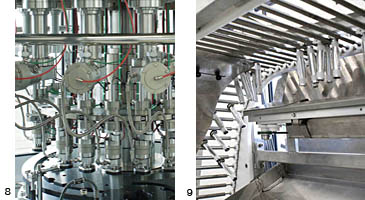

8. Gel Filler - 9. Sorting unit for bag-on-valves

Machinery for Aerosols - Aerosol Concepts



Aerosols



Semi-automatic Installations
for laboratory and small production



Automatic Installations
Capacity:
40 - 60 / 80 - 120 units/min, indexing
150 - 600 units/min,
rotation



Polyurethane Foams



Semi-automatic Installations
Capacity:
up to 3000 units per day



Automatic Installations
- Product Filler for polyurethane foam
- Valve Sorter
- Valve Inserter
- Crimper
- Propellant Filler
- Can Shaker
- Thread Ring Inserter



Capacity:
up to 40 units per minute, indexing
up to 150 units per minute, rotation



Bag-on-valves



Semi-automatic Installations
- Undercup Filler/Crimper
- Product Filler
- Gel Mixing Filler



Capacity:

up to 4000 units per day



Automatic Indexing Installations
- Undercup Filler/Crimper
- Valve Sorter
- Valve Inserter
- Pressure Tester
- Product Filler
- Gel Mixing Filler



Capacity:
up to 40 units per minute



Automatic Rotary Machines
- Valve Inserter
- Undercup Filler/Crimper
- Pressure Tester
- Product Filler



Capacity:
up to 200 units per minute



Brochures



Automatic Filling Line for PU foam



2055 - Bag-on-Valve Indexing Unit

2011/026 - Bag-on-Valve Filler



2002-500 - Undercup Crimper

2002-501 - Undercup Crimper



0593I - 2 Chamber Filler

0593X - 2 Chamber Filler

0593Z - 2 Chamber Filler

2049 - 2 Chamber Indexing Unit
